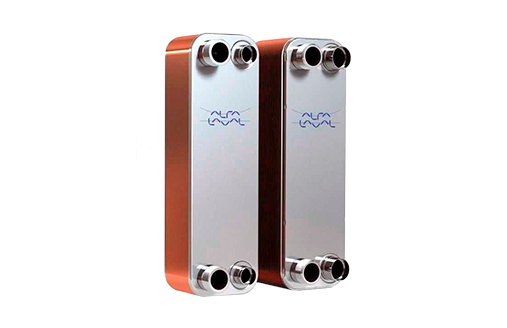

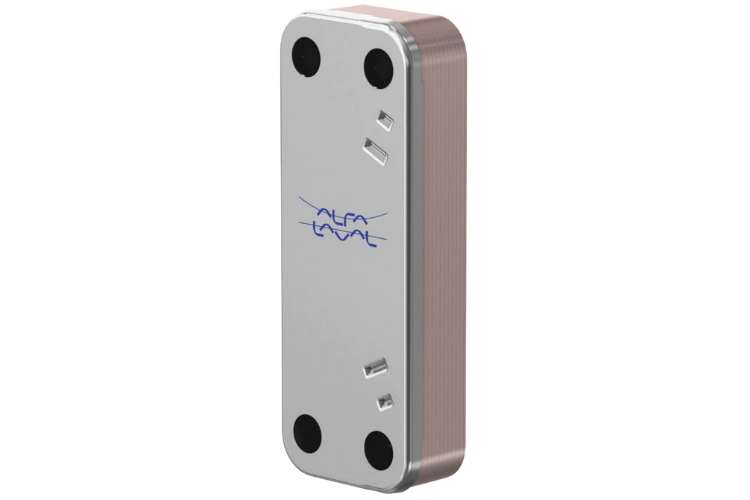

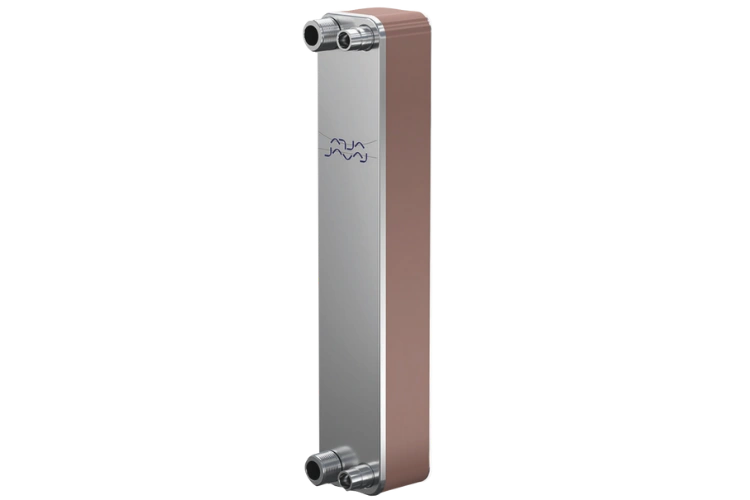

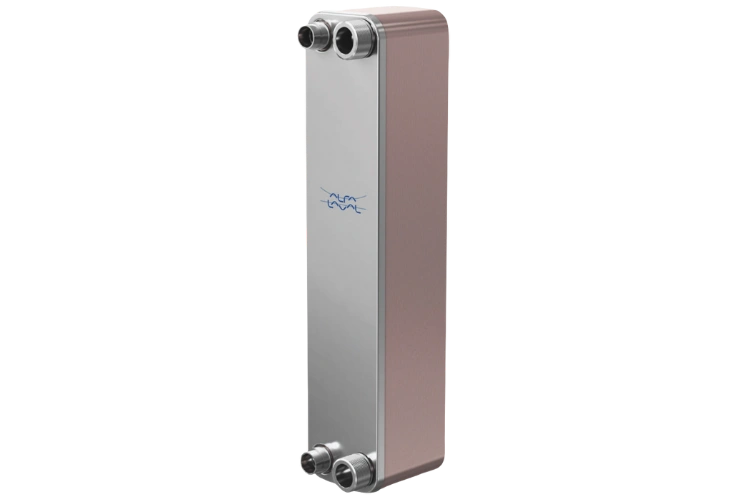

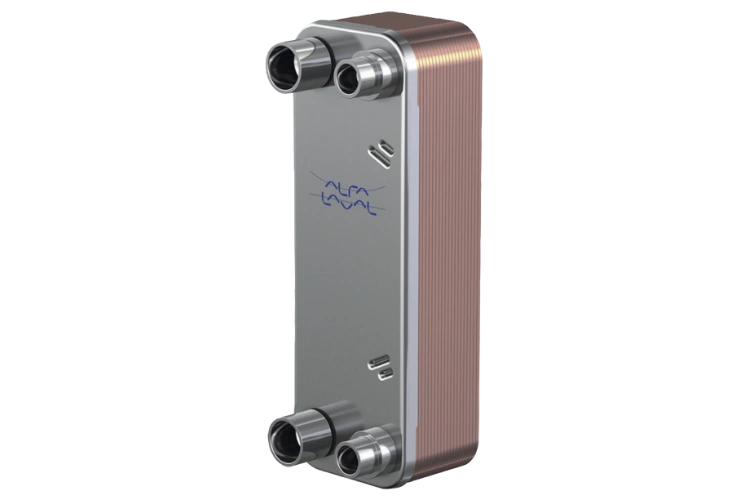

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. Based on standard components and a modular concept, including symmetric and asymmetric channels, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 7.4 + (2.14 * n) |
Volume per channel, litres (gal) A (S1-S2): 0.02531 (0.02531) A (S3-S4): 0.02431 (0.0064) |
| Connections Stainless steel |
A measure (inches) 0.29 + (0.08 * n) |
Max. particle size, mm (inch) 1.2 (0.047) |
| Plates Stainless steel |
Weight (kg) 2 0.132 + (0.04 * n) |
Max. flowrate1 m3/h (gpm) 2.8 (12.3) |
| Brazing filler Copper |
Weight (lb) 2 0.29 + (0.09 * n) |

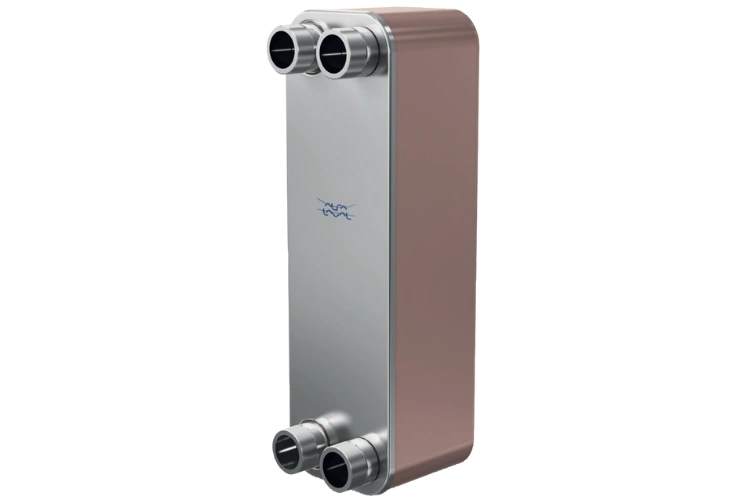

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 15 + (2.56 * n) |
Volume per channel, litres (gal) 0.21 (0.054) |
| Connections Stainless steel |
A measure (inches) 0.59 + (0.1 * n) |
Max. particle size, mm (inch) 1.2 (0.047) |
| Plates Stainless steel |
Weight (kg) 2 4.82 + (0.35 * n) |
Max. flowrate1 m3/h (gpm) 51 (224) |
| Brazing filler Copper |
Weight (lb) 2 10.63 + (0.77 * n) |
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. The XP design is particularly suited for CO2 applications. Asymmetric channels provide optimal efficiency in the most compact design. This results in low refrigerant charge or lower pressure drop on the water or brine side, reducing the CO2 footprint. Based on standard components and a modular concept, including symmetric and asymmetric channels, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 16 + (2.07 * n) |
Volume per channel, litres (gal) CB/CBH/CBP AH, AM (S1-S2): 0.20 (0.052) CB/CBH/CBPAH, AM (S3-S4): 0.16 (0.041) |
| Connections Stainless steel |
A measure (inches) 0.63 + (0.08 * n) |
Max. particle size, mm (inch) 1.2 (0.047) |
| Plates Stainless steel |
Weight (kg) 2 4.82 + (0.35 * n) |
Max. flowrate1 m3/h (gpm) 51 (224) |
| Brazing filler Copper |
Weight (lb) 2 10.63 + (0.77 * n) |

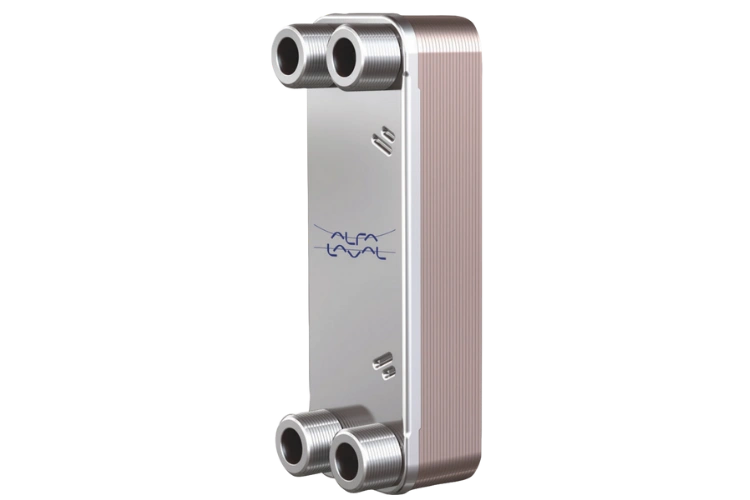

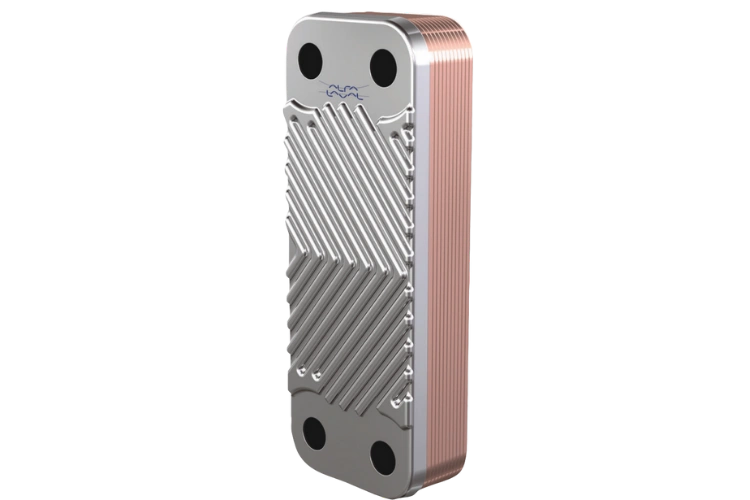

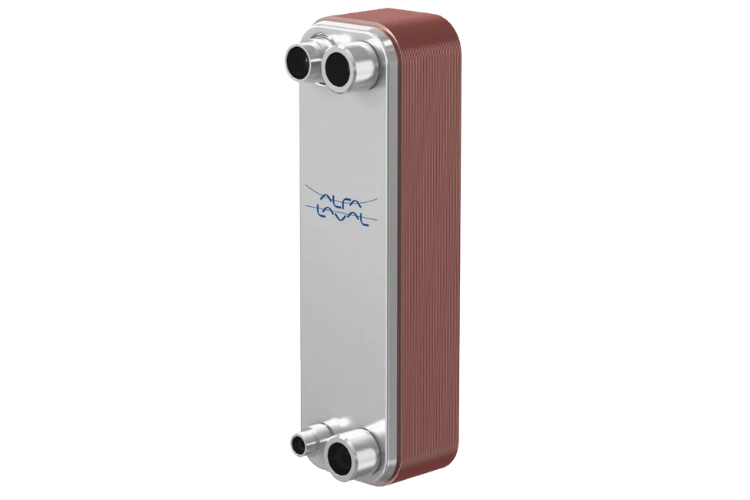

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. Based on standard components and a modular concept, including symmetric and asymmetric channels, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 7 + (2.16 * n) |
Volume per channel, litres (gal) A (S1-S2): 0.030 (0.0078) A (S3-S4):0.024 (0.0063) H: 0.027 (0.0070) |
| Connections Stainless steel |
A measure (inches) 0.28 + (0.09 * n) |
Max. particle size, mm (inch) 1.1 (0.043) |
| Plates Stainless steel |
Weight (kg) 2 0.14 + (0.04 * n) |
Max. flowrate1 m3/h (gpm) 4.1 (18) |
| Brazing filler Copper |
Weight (lb) 2 0.3 + (0.09 * n) |

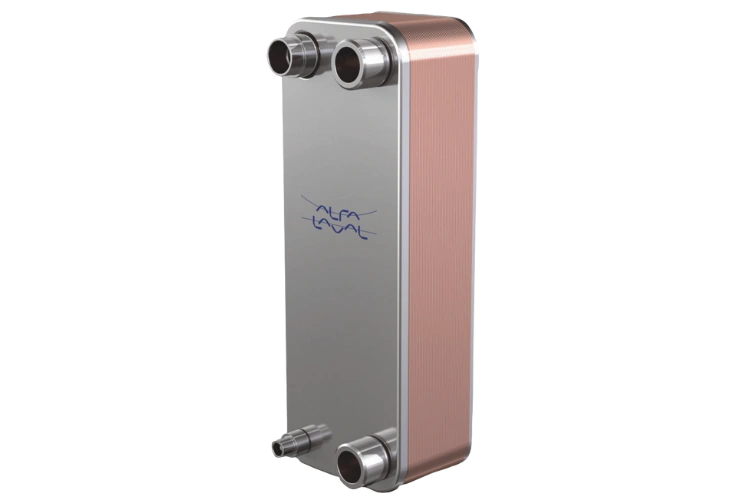

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. Based on standard components and a modular concept, including symmetric and asymmetric channels, each unit is custom-built to meet the specific requirements of each individual installation
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 7 + (2.16 * n) |
Volume per channel, litres (gal) A (S1-S2): 0.042 (0.011) A (S3-S4): 0.035 (0.0089) H: 0.038 (0.010) |
| Connections Stainless steel |
A measure (inches) 0.28 + (0.09 * n) |
Max. particle size, mm (inch) 1.1 (0.043) |
| Plates Stainless steel |
Weight (kg) 2 0.22 + (0.07 * n) |
Max. flowrate1 m3/h (gpm) 4.1 (18) |
| Brazing filler Copper |
Weight (lb) 2 0.48 + (0.15 * n) |

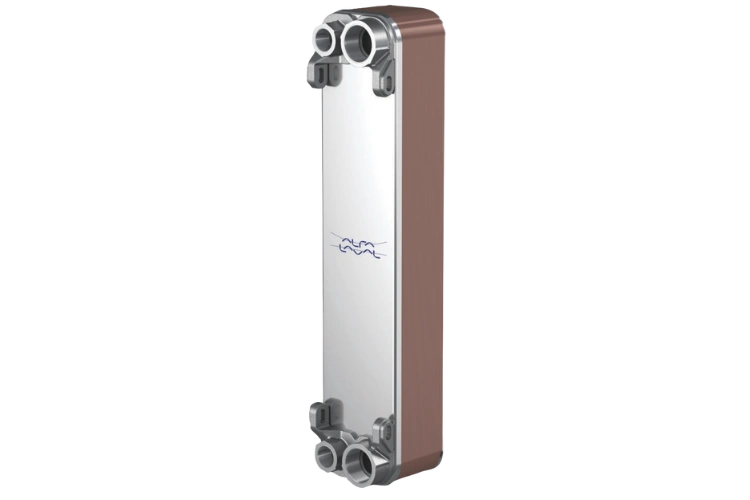

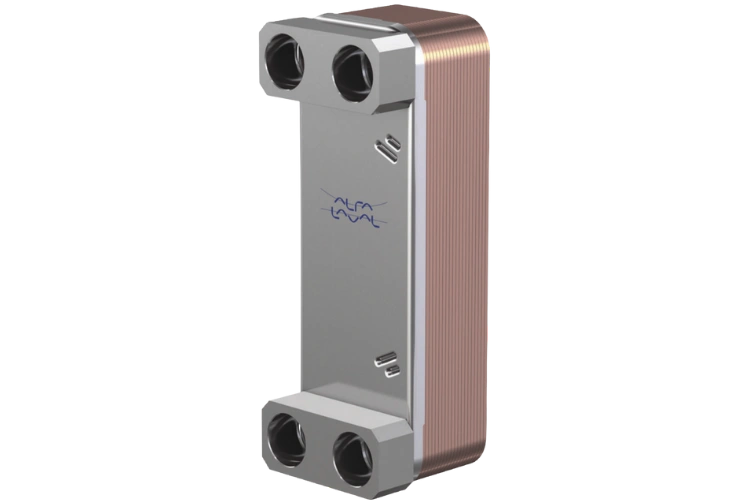

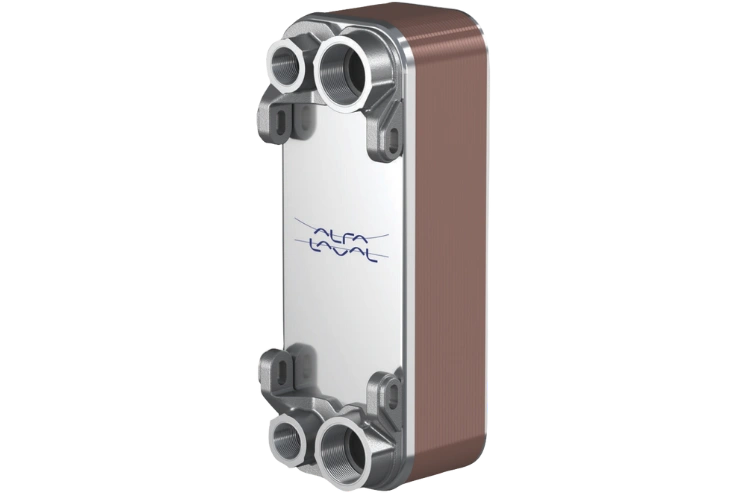

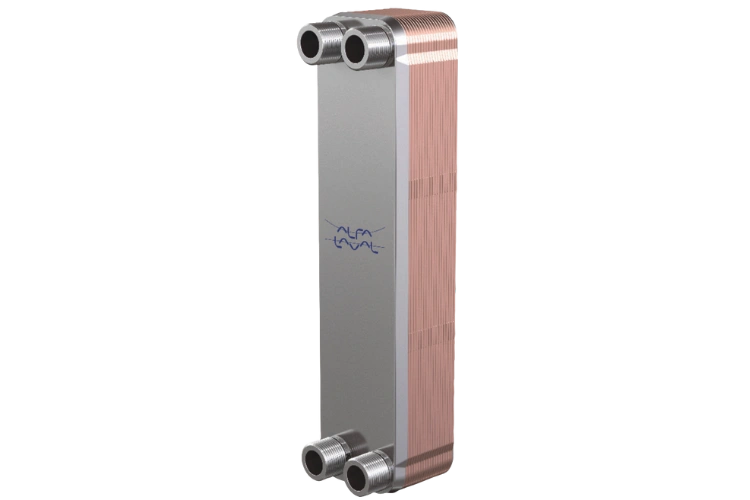

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. The double wall construction provides external leak detection and minimizes the risk of mixing the fluids. The thermal performance is similar to single wall heat exchanger.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 12.2 + (2.27 * n) |
Volume per channel, litres (gal) 0.0335 (0.0088) |
| Connections Stainless steel |
A measure (inches) 0.48 + (0.09 * n) |
Max. particle size, mm (inch) 0.6 (0.024) |
| Plates Stainless steel |
Weight (kg) 2 0.6 + (0.13 * n) |
Max. flowrate1 m3/h (gpm) 4.1 (18.1) |
| Brazing filler Copper |
Weight (lb) 2 1.32 + (0.29 * n) |

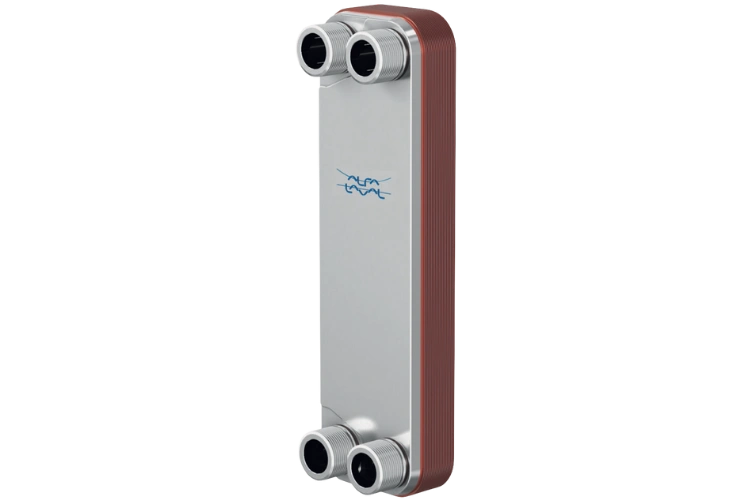

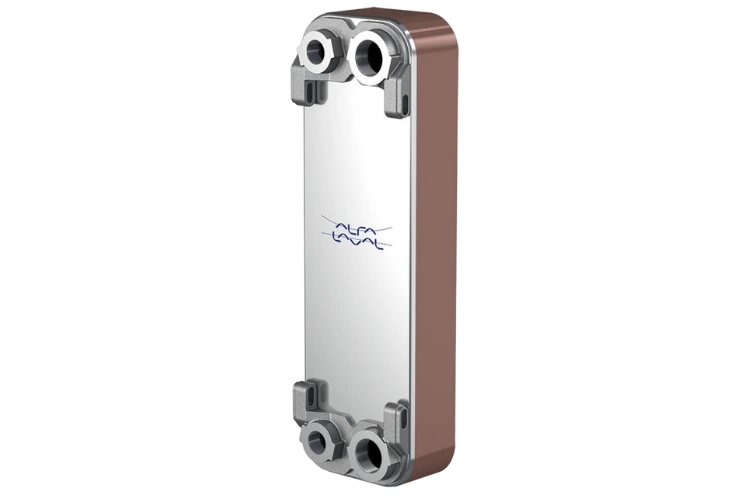

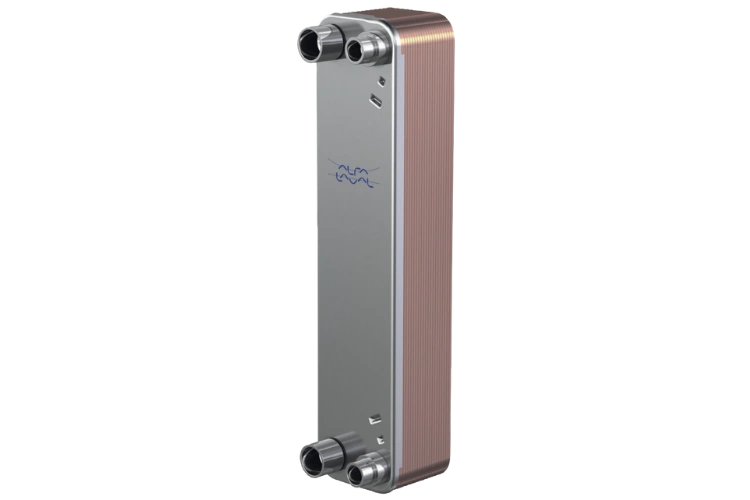

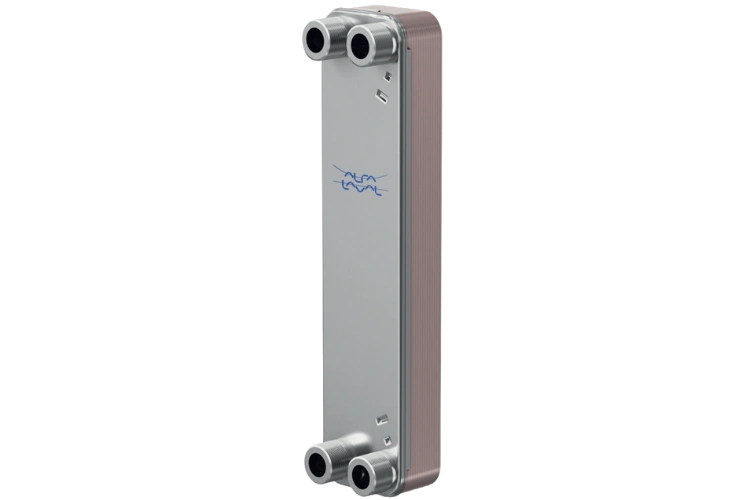

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 8 + (1.5 * n) |
Volume per channel, litres (gal) 0.028 (0.0072) |
| Connections Stainless steel |
A measure (inches) 0.31 + (0.06 * n) |
Max. particle size, mm (inch) 0.6 (0.024) |
| Plates Stainless steel |
Weight (kg) 2 0.6 + (0.08 * n) |
Max. flowrate1 m3/h (gpm) 8.8 (39) |
| Brazing filler Copper |
Weight (lb) 2 1.32 + (0.18 * n) |

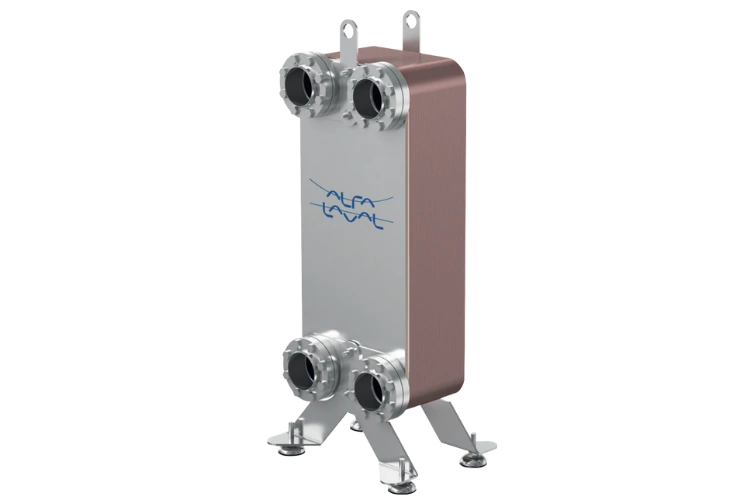

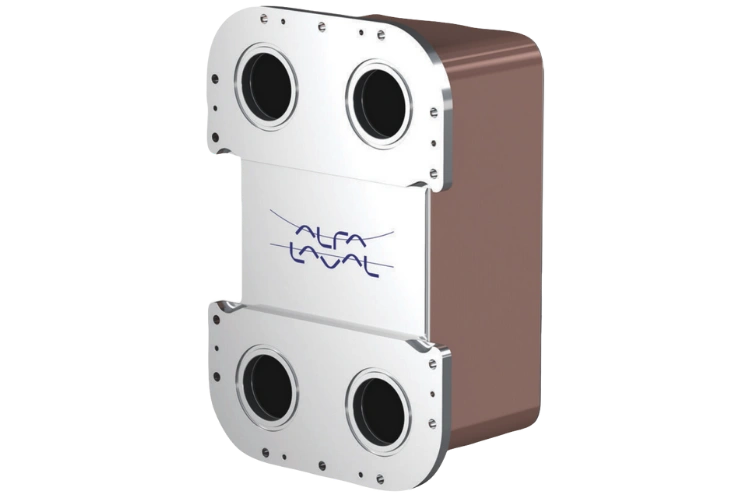

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 11 + (2.7 * n) |
Volume per channel, litres (gal) 0.51 (0.132) |
| Connections Stainless steel |
A measure (inches) 0.43 + (0.11 * n) |
Max. particle size, mm (inch) 1.8 (0.071) |
| Plates Stainless steel |
Weight (kg) 2 12 + (0.6 * n) |
Max. flowrate1 m3/h (gpm) 128 (563) |
| Brazing filler Copper |
Weight (lb) 2 26.46 + (1.32 * n) |

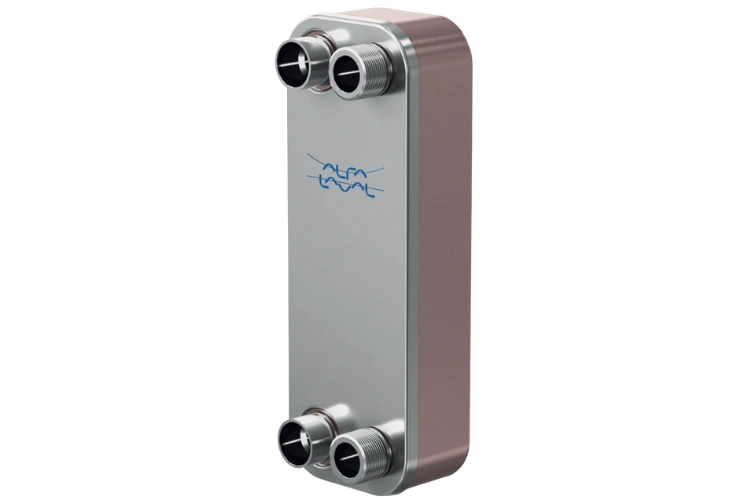

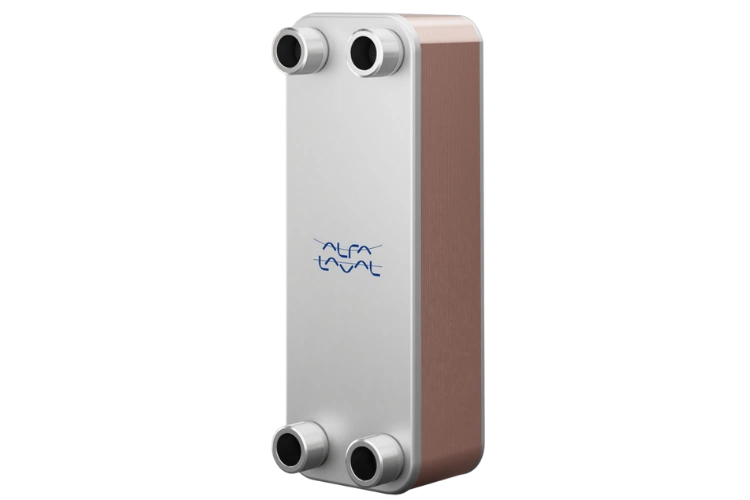

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 13 + (2.31 * n) |
Volume per channel, litres (gal) 0.054 (0.014) |
| Connections Stainless steel |
A measure (inches) 0.51 + (0.09 * n) |
Max. particle size, mm (inch) 1 (0.039) |
| Plates Stainless steel |
Weight (kg) 2 1.2 + (0.11 * n) |
Max. flowrate1 m3/h (gpm) 14 (62) |
| Brazing filler Copper |
Weight (lb) 2 2.65 + (0.24 * n) |

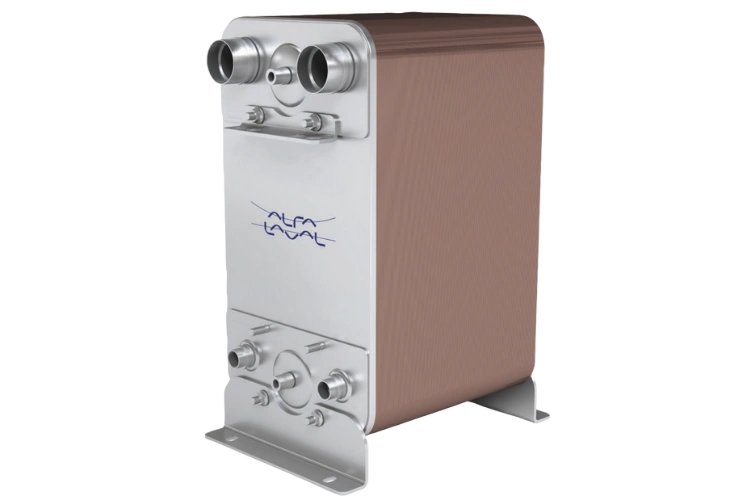

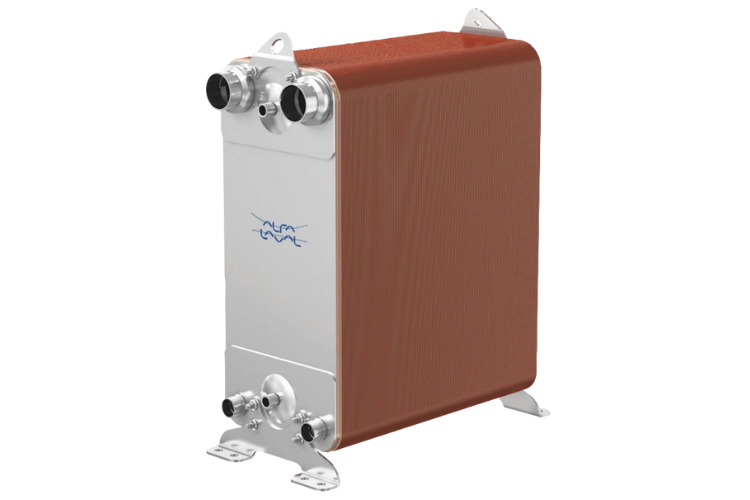

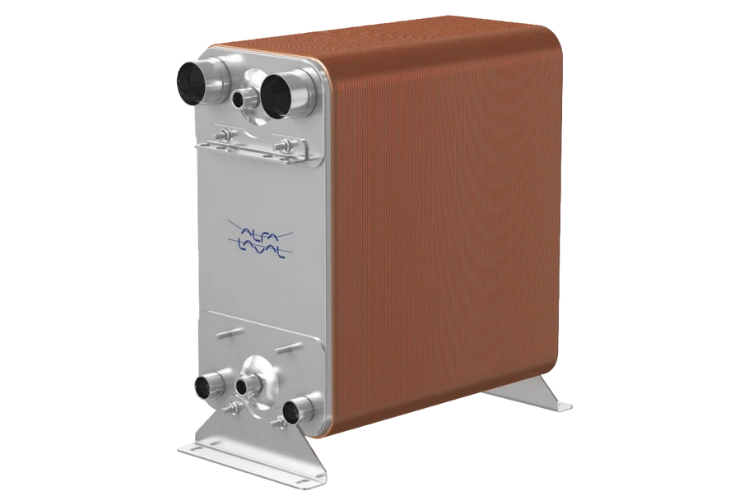

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 11 + (2.62 * n) |
Volume per channel, litres (gal) (S1-S2): 0.69 (0.178) (S3-S4): 0.58 (0.150) |
| Connections Stainless steel |
A measure (inches) 0.43 + (0.1 * n) |
Max. particle size, mm (inch) 1.8 (0.071) |
| Plates Stainless steel |
Weight (kg) 2 21 + (1.26 * n) |
Max. flowrate1 m3/h (gpm) 200 (880) |
| Brazing filler Copper |
Weight (lb) 2 46.3 + (2.78 * n) |

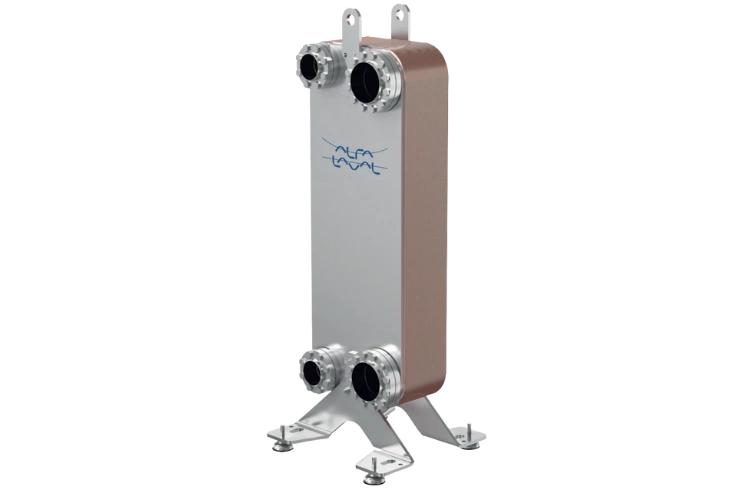

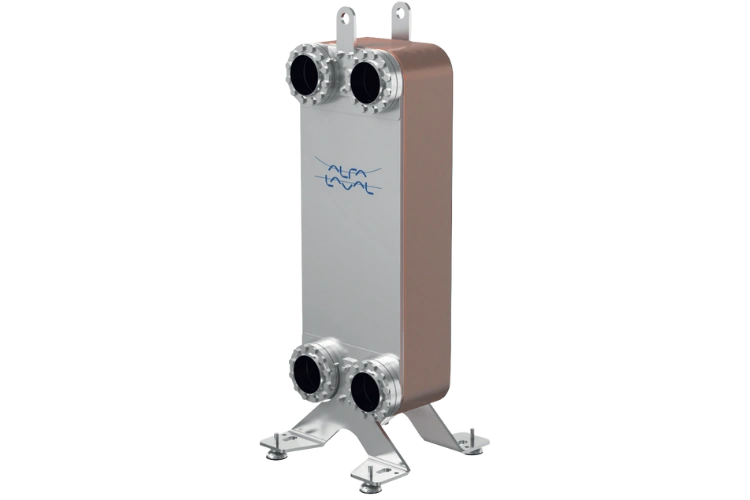

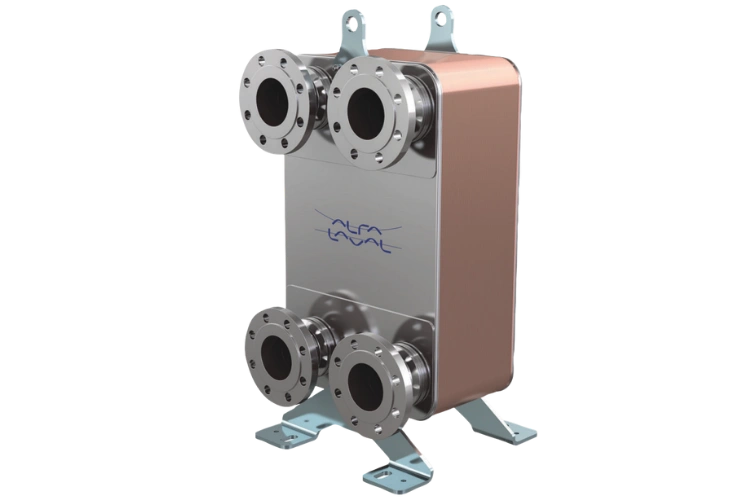

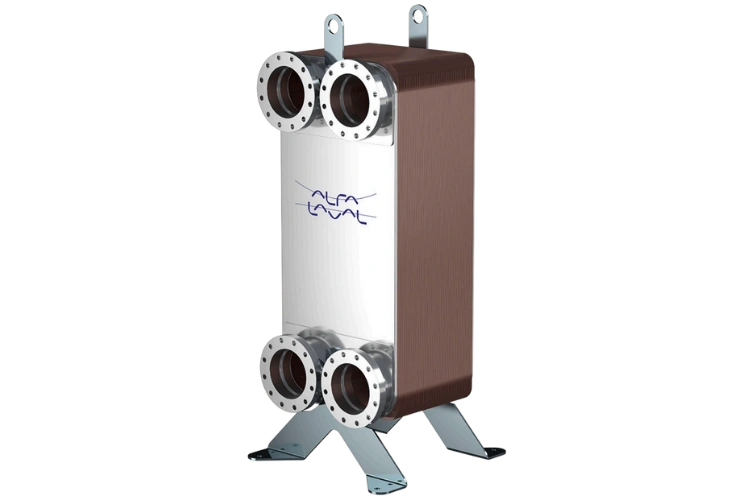

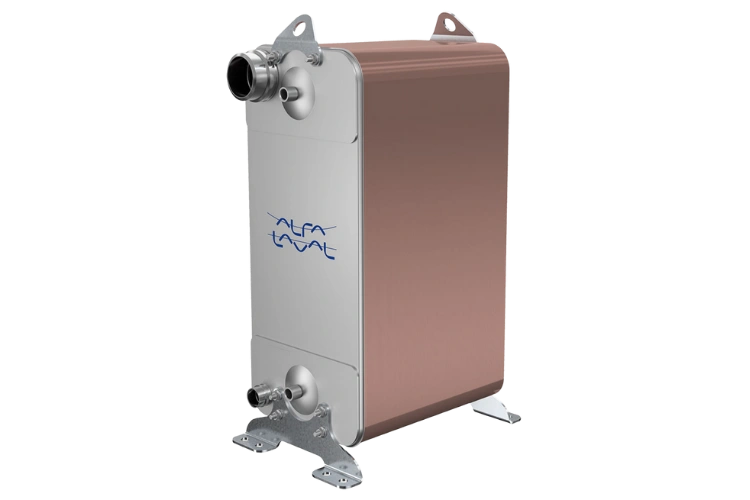

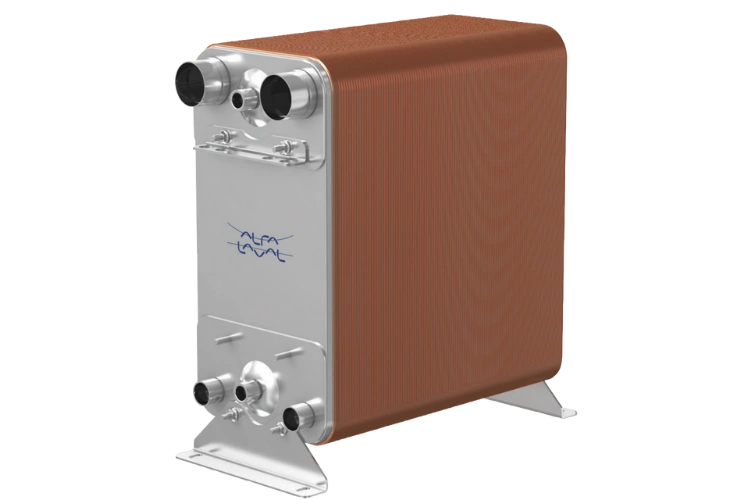

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 14 + (2.56 * n) |
Volume per channel, litres (gal) 0.74 (0.19) |
| Connections Stainless steel |
A measure (inches) 0.55 + (0.1 * n) |
Max. particle size, mm (inch) 1.8 (0.071) |
| Plates Stainless steel |
Weight (kg) 2 24 + (1.35 * n) |
Max. flowrate1 m3/h (gpm) 200 (880) |
| Brazing filler Copper |
Weight (lb) 2 52.91 + (2.98 * n) |

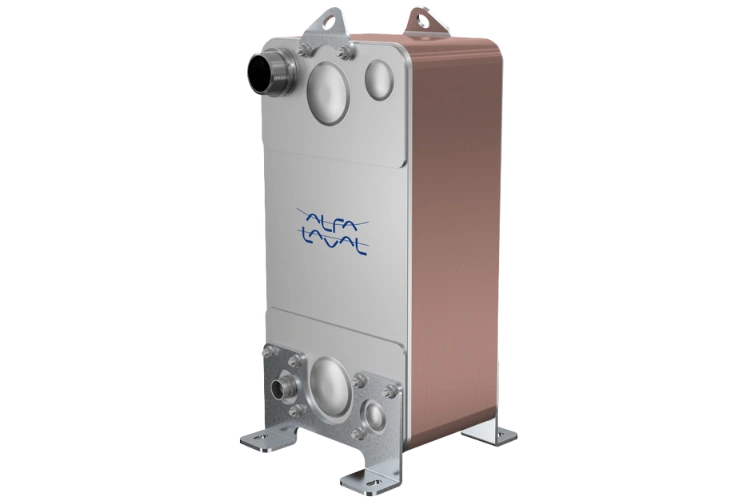

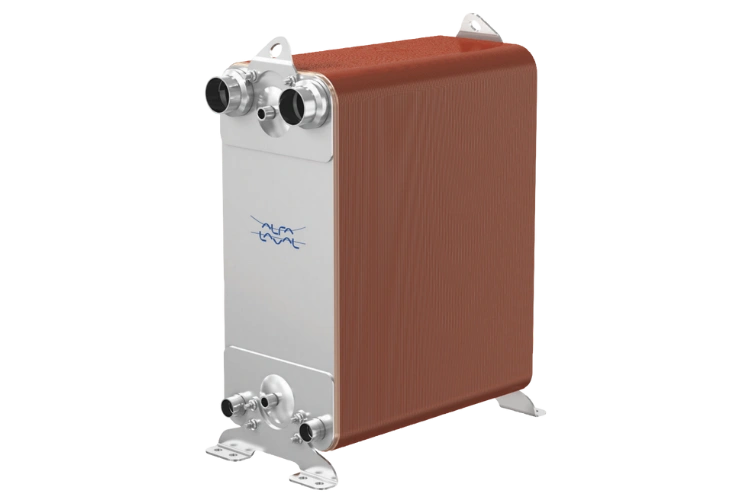

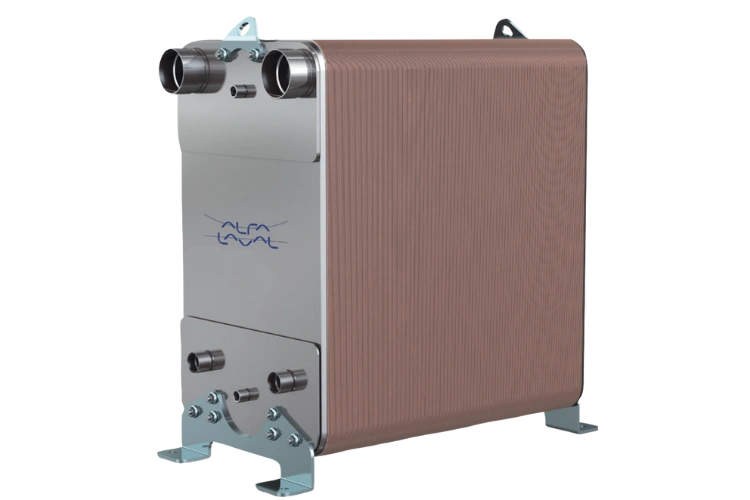

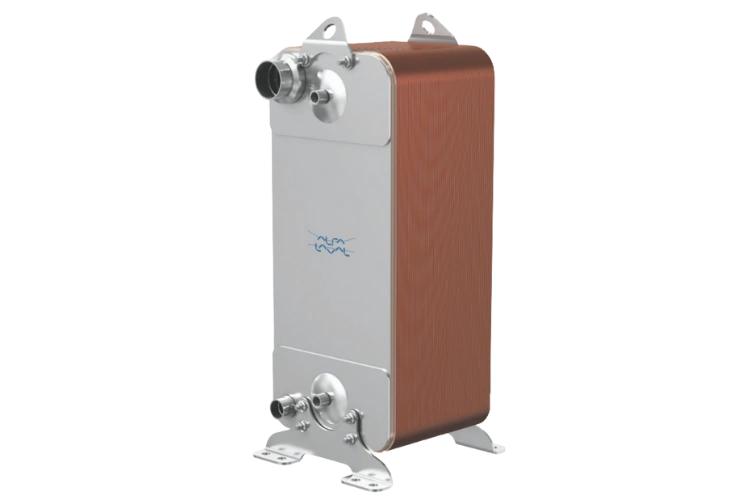

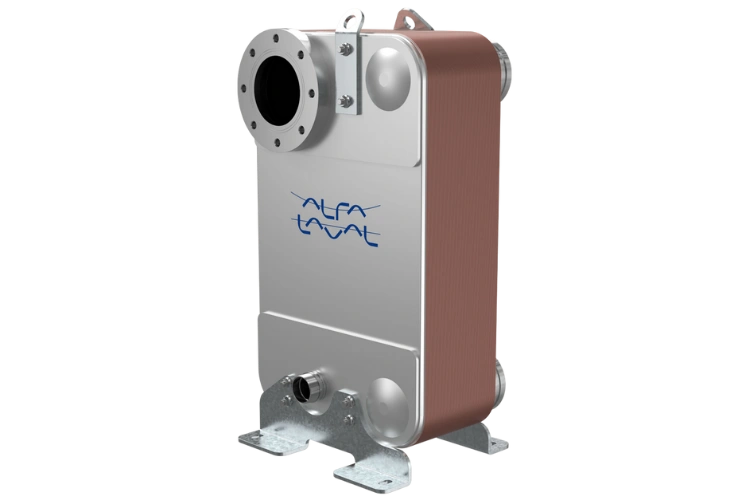

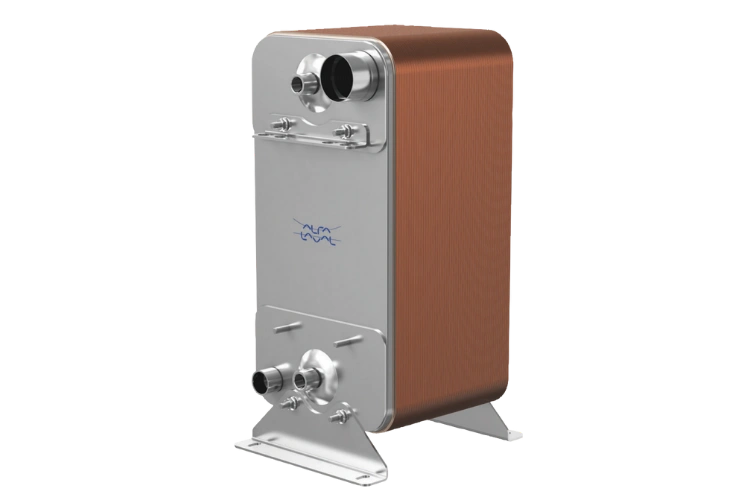

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Asymmetric channels provide optimal efficiency in the most compact design. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 14.2 + (2.17 * n) |
Volume per channel, litres (gal) AH, AM (S1–S2): 0.86 (66.14 + (2.51 * n)) AH, AM (S3–S4): 0.57 (0.1506) |
| Connections Stainless steel |
A measure (inches) 0.56 + (0.09 * n) |
Max. particle size, mm (inch) 1 (0.039) |
| Plates Stainless steel |
Weight (kg) 2 30 + (1.14 * n) |
Max. flowrate1 m3/h (gpm) 285 (1254.8) |
| Brazing filler Copper |
Weight (lb) 2 66.14 + (2.51 * n) |

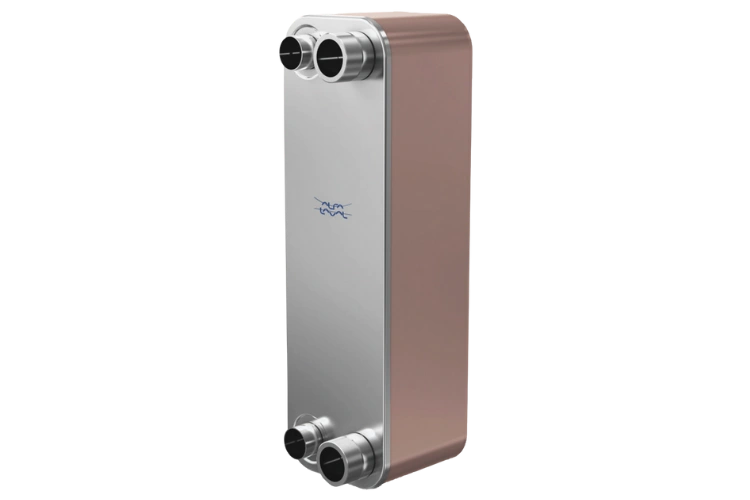

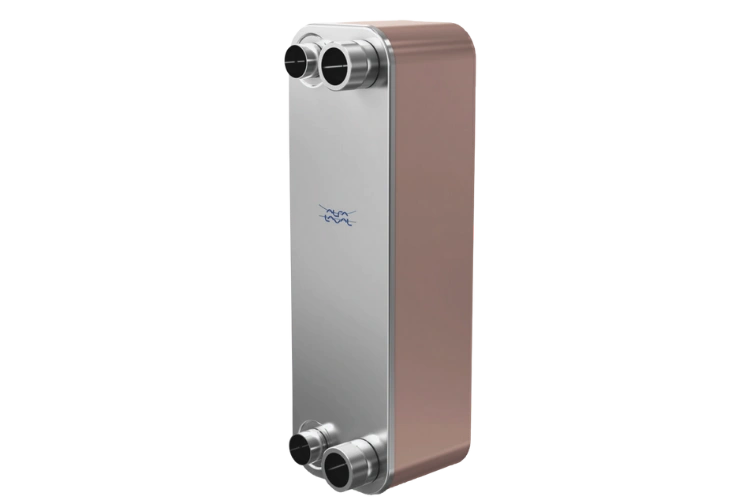

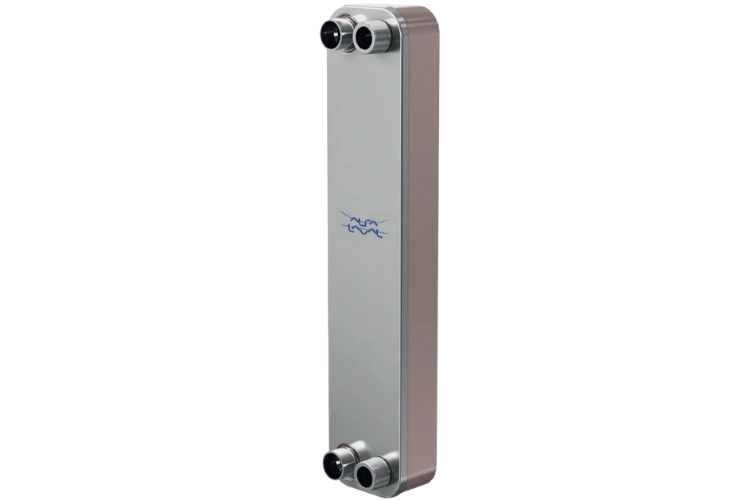

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) CB, CBH: 13 + (2.32 * n) CBP: 15 + (2.32 * n) |
Volume per channel, litres (gal) 0.103 (0.0272) |
| Connections Stainless steel |
A measure (inches) CB, CBH: 0.51 + (0.09 * n) 2 CBP: 0.59 + (0.09 * n) |
Max. particle size, mm (inch) 1 (0.039) |
| Plates Stainless steel |
Weight (kg) 3 CB, CBH: 2.1 + (0.18 * n) 2 CBP: 2.26 + (0.18 * n) |
Max. flowrate1 m3/h (gpm) 14 (61.6) |
| Brazing filler Copper |
Weight (lb) 3 CB, CBH: 4.63 + (0.40 * n) CBP: 4.98 + (0.40 * n) |

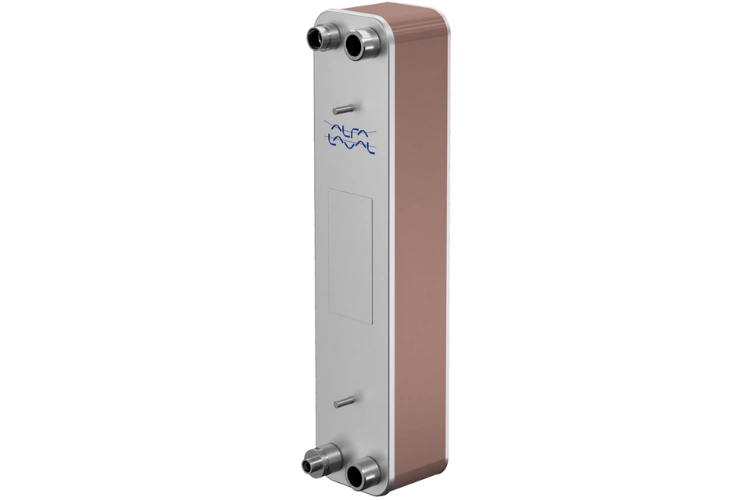

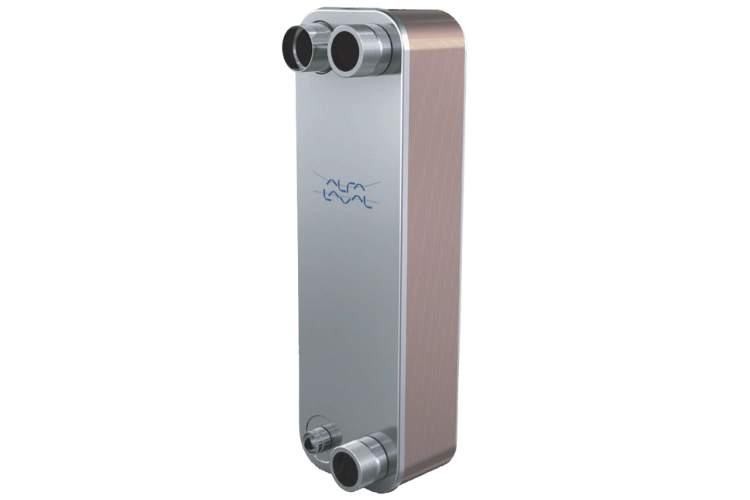

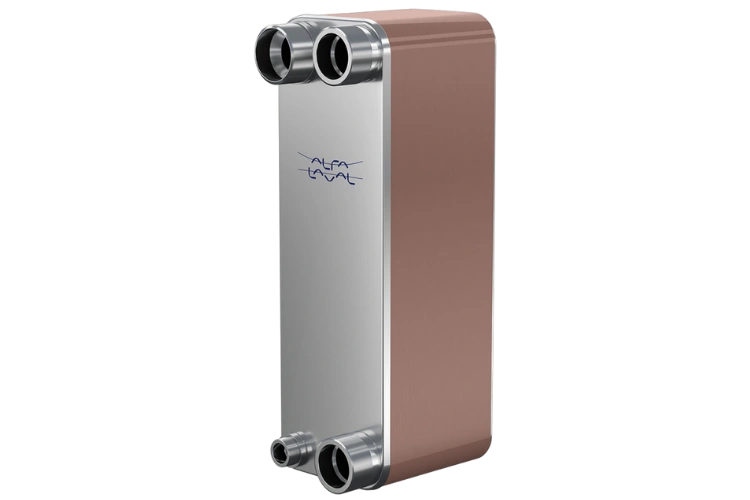

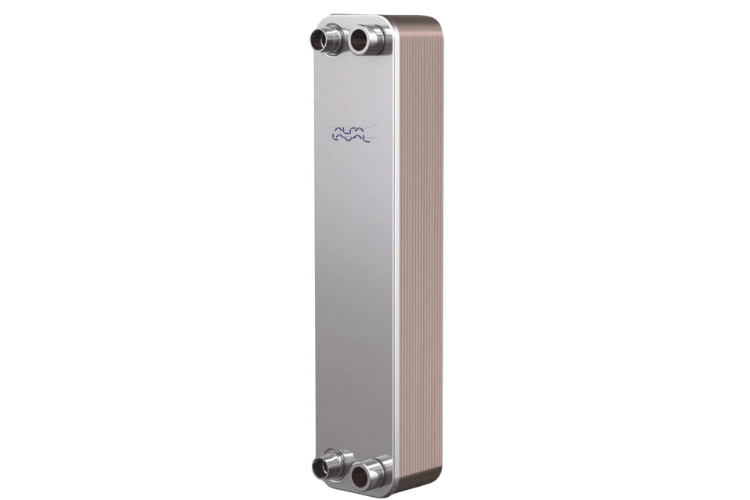

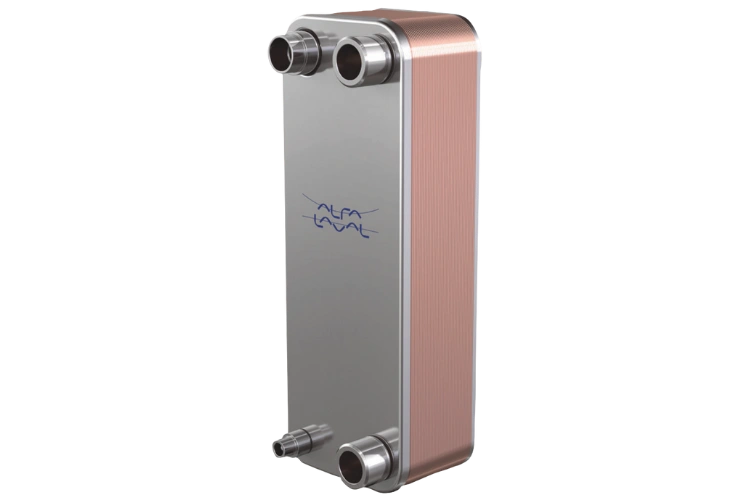

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Asymmetric channels provide optimal efficiency in the most compact design. This results in low refrigerant charge or lower pressure drop on the water or brine side, reducing the CO2 footprint. Based on standard components and a modular concept, including symmetric and asymmetric channels, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 13 + (1.98 * n) |
Volume per channel, litres (gal) AH (S1-S2): 0.104 (0.027) AH (S3-S4): 0.084 (0.022) H: 0.094 (0.024) |
| Connections Stainless steel |
A measure (inches) 0.51 + (0.08 * n) |
Max. particle size, mm (inch) 1 (0.039) |
| Plates Stainless steel |
Weight (kg) 2 2.1 + (0.18 * n) |
Max. flowrate1 m3/h (gpm) 8.8 (39) |
| Brazing filler Copper |
Weight (lb) 2 4.63 + (0.4 * n) |

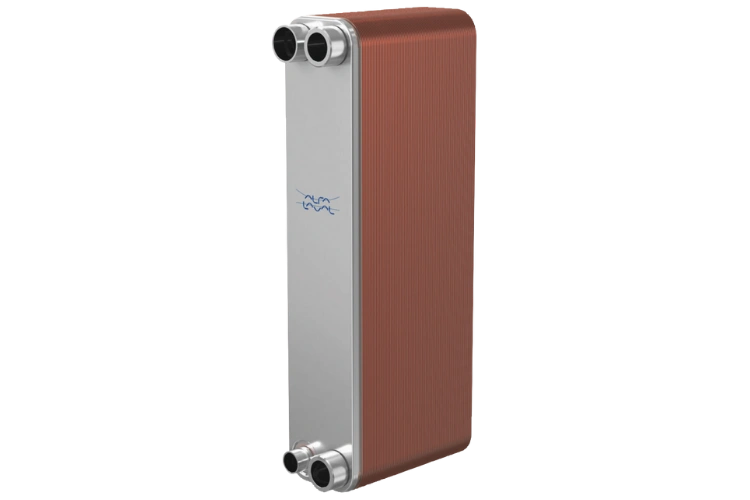

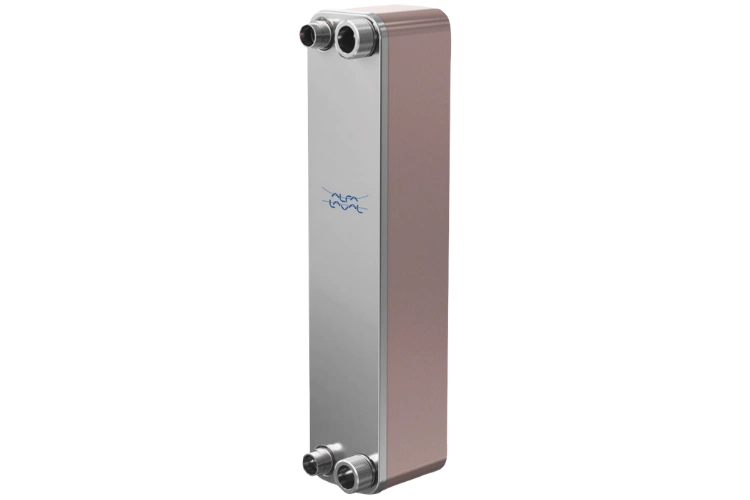

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Asymmetric channels provide optimal efficiency in the most compact design. This results in low refrigerant charge or lower pressure drop on the water or brine side, reducing the CO2 footprint. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 11.5 + (1.4 * n) |
Volume per channel, litres (gal) (S1-S2): 0.088 (0.023) (S3-S4): 0.046 (0.012) |
| Connections Stainless steel |
A measure (inches) 0.45 + (0.06 * n) |
Max. particle size, mm (inch) 0.7 (0.028) |
| Plates Stainless steel |
Weight (kg) 2 2.1 + (0.14 * n) |
Max. flowrate1 m3/h (gpm) 8.8 (39) |
| Brazing filler Copper |
Weight (lb) 2 4.63 + (0.31 * n) |

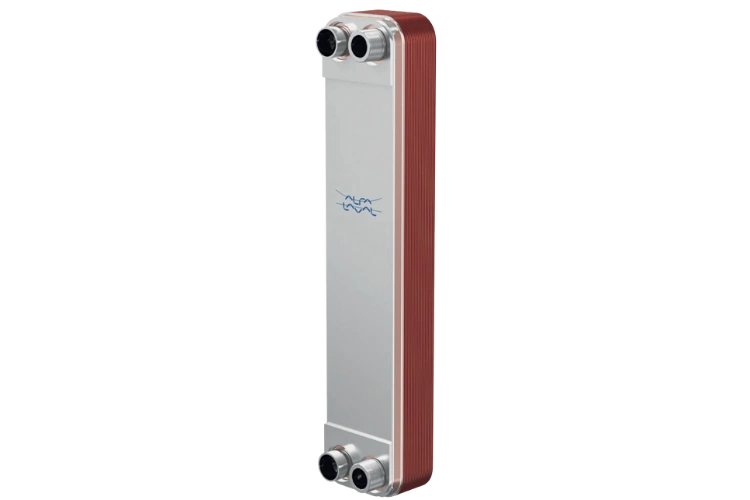

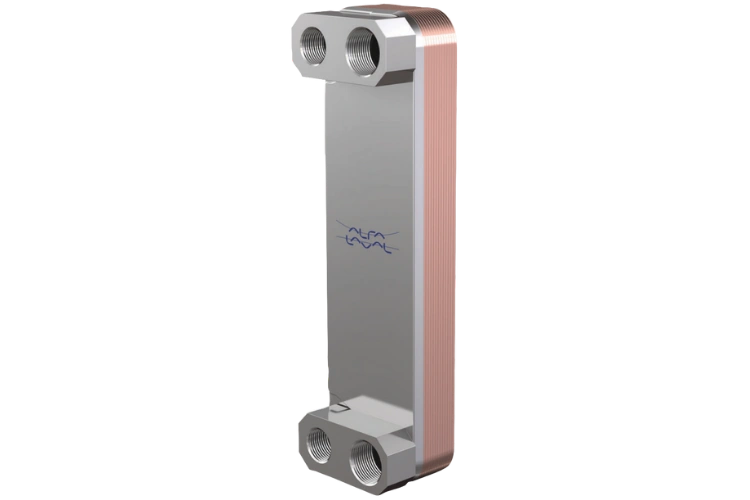

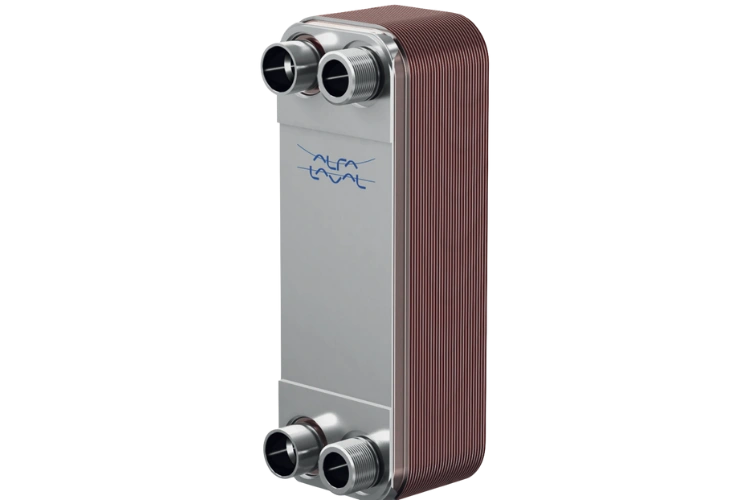

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. The XP design is particularly suited for CO2 applications. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 13 + (2.4 * n) |
Volume per channel, litres (gal) 0.050 (0.013) |
| Connections Stainless steel |
A measure (inches) 0.51 + (0.09 * n) |
Max. particle size, mm (inch) 1.2 (0.05) |
| Plates Stainless steel |
Weight (kg) 2 2 + (0.13 * n) |
Max. flowrate1 m3/h (gpm) 14 (61.6) |
| Brazing filler Copper |
Weight (lb) 2 4.41 + (0.29 * n) |

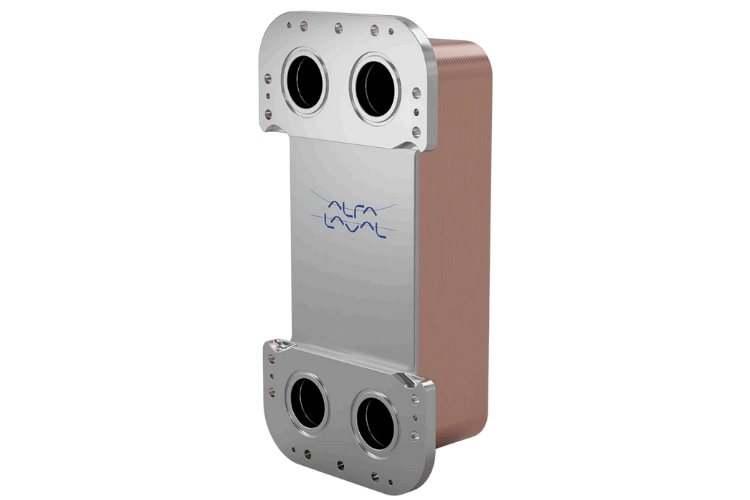

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. The XP design is particularly suited for CO2 applications. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.
| Materiales | Dimensiones | Datos |
|---|---|---|
| Cover plates Stainless steel |
A measure (mm) 14 + (2.37 * n) |
Volume per channel, litres (gal) 0.095 (0.025) |
| Connections Stainless steel |
A measure (inches) 0.55 + (0.09 * n) |
Max. particle size, mm (inch) 1.2 (0.05) |
| Plates Stainless steel |
Weight (kg) 2 2.5 + (0.22 * n) |
Max. flowrate1 m3/h (gpm) 14 (61.6) |
| Brazing filler Copper |
Weight (lb) 2 5.51 + (0.49 * n) |
